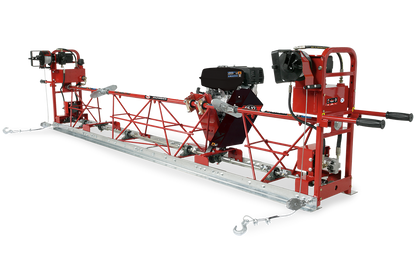

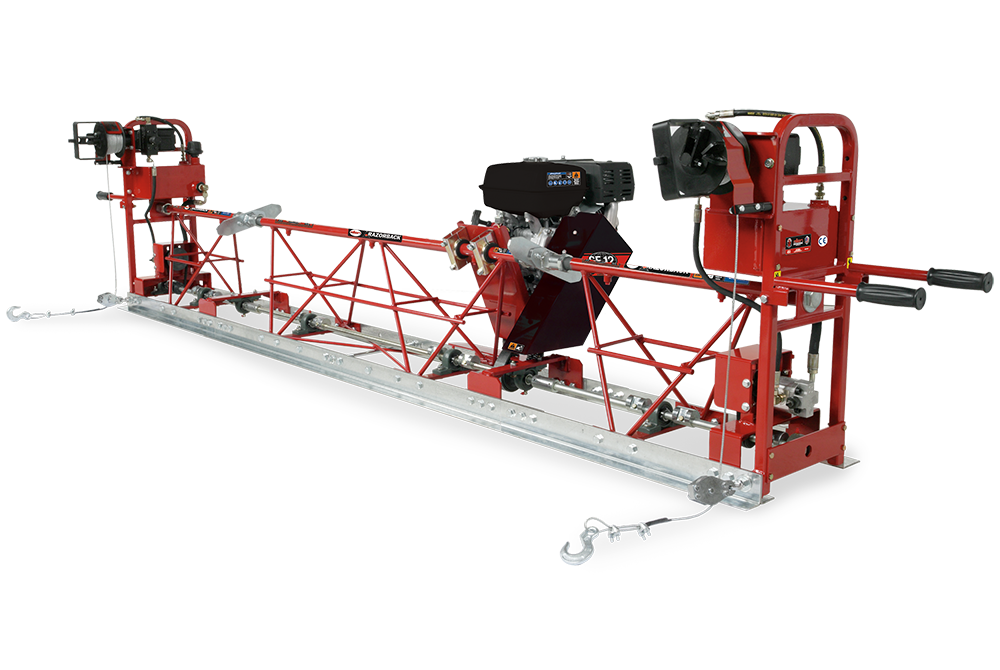

Proven on projects worldwide for over 40 years, the Allen® Razorback® Truss Screed is the trusted industry standard in steel‑framed truss screeds.

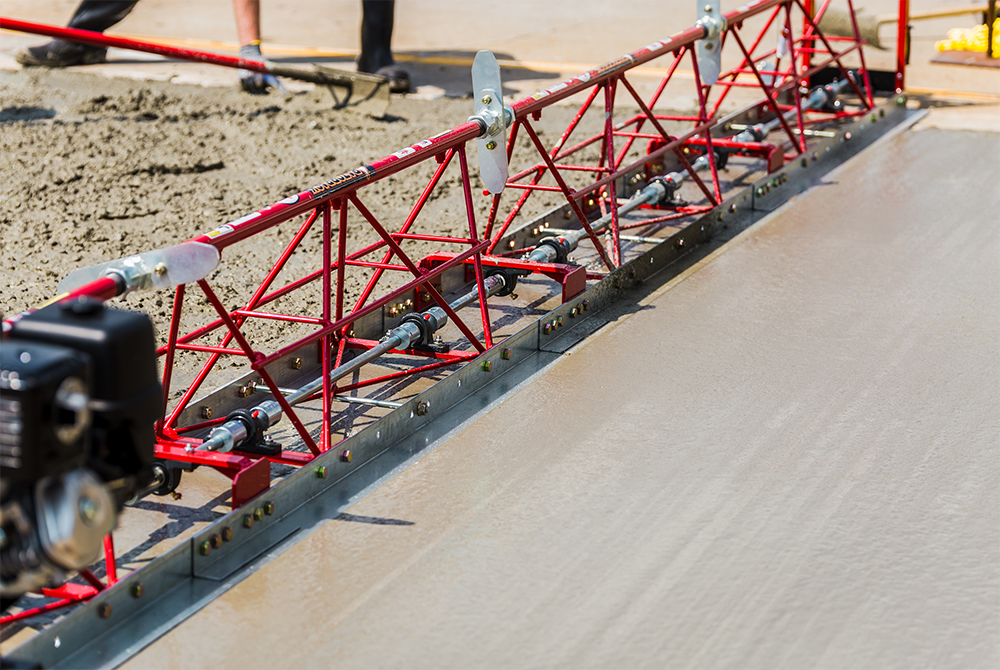

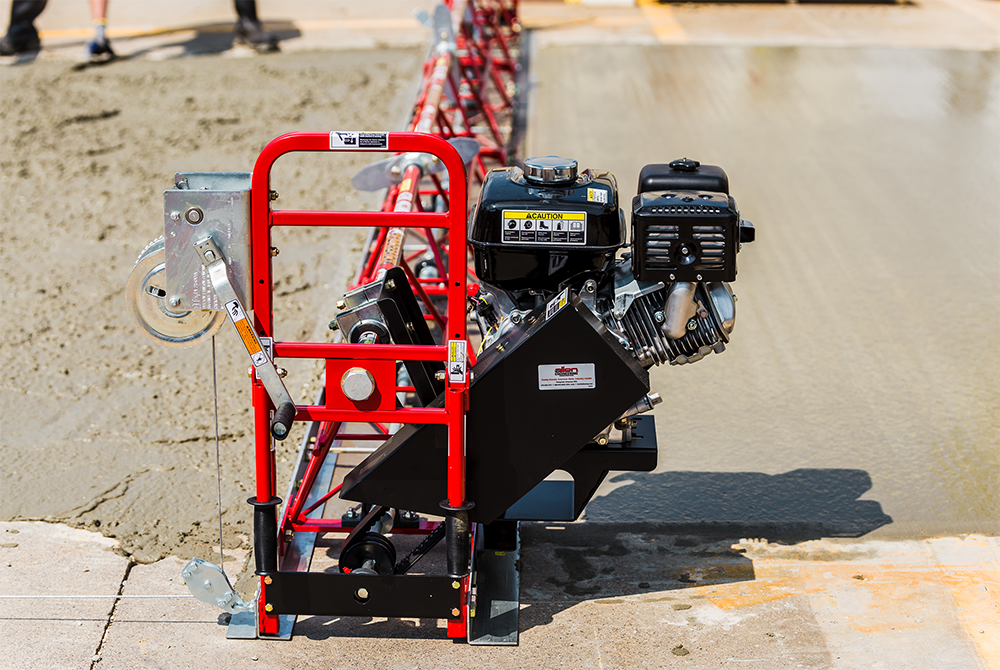

Powered by a reliable gasoline engine, this self‑contained unit delivers consistent vibration and offers a hydraulic winch option for added efficiency. Its versatility makes it ideal for a wide range of applications, with accessories available for roadways, bridges, slab‑on‑grade, and more.
SPECIFICATIONS
Frame Construction
Steel
Vibration System
Eccentric Shaft
Vibrations
10,000 VPM
Engine (widths less than 42.5')
Honda GX270 - 9 HP / 6.7 kW
Engine (widths more than 42.5')
Honda GX340 - 11 HP / 8.2 kW
Maximum Width
65 ft / 19.8 m
Lowest Concrete Slump
3 in / 7.6 cm
Maximum Consolidation Depth
10 in / 25.4 cm
Blades
10 Gauge Galvanized Steel
Custom‑Built Machine – Each Truss Screed is tailored to project requirements.
Quoting Process – Contact our team to discuss specifications and receive a personalized quote.
Applications – Ideal for roadways, bridges, slab‑on‑grade, and other large concrete projects.
Support – Accessories and options available to match your jobsite needs.
