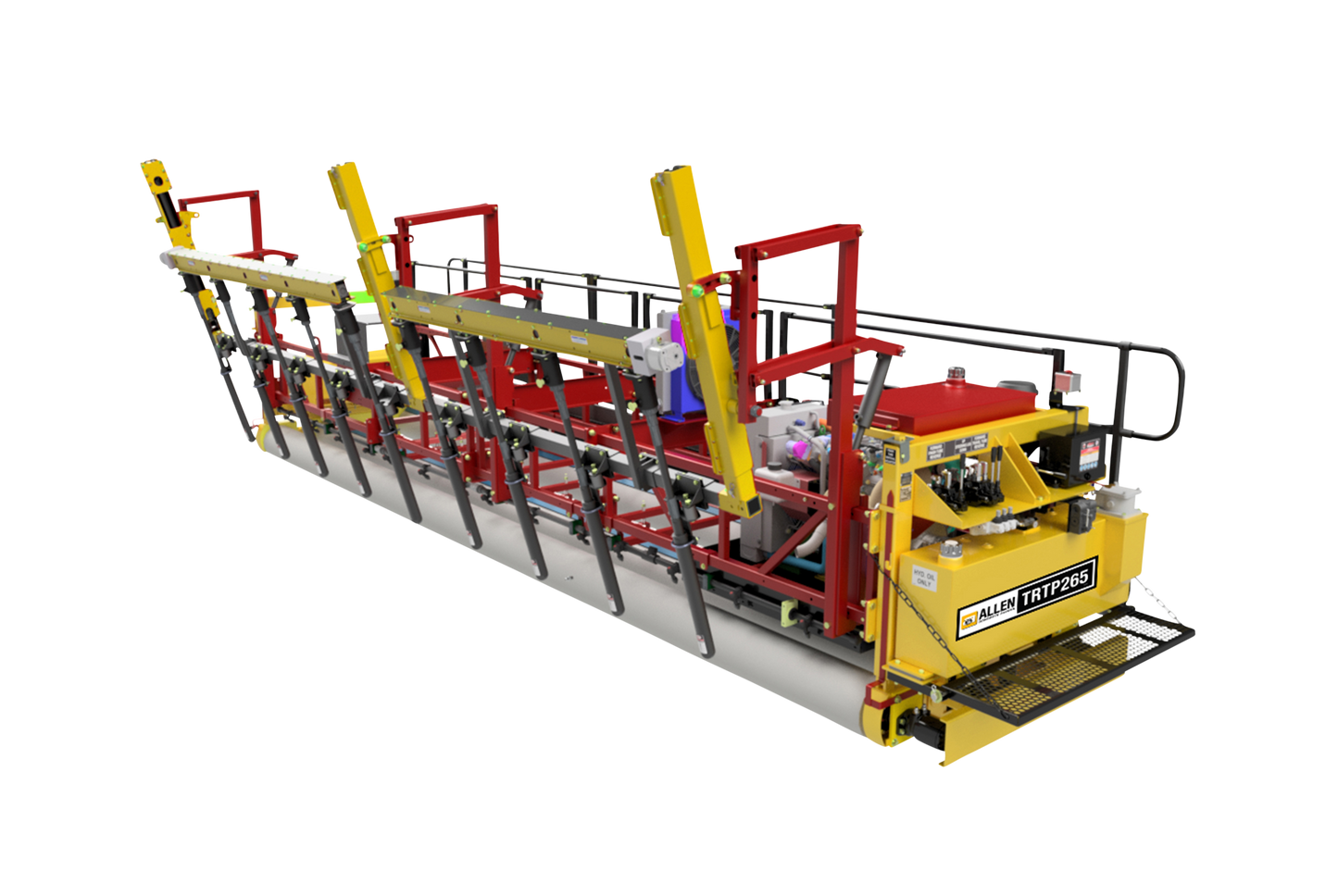

The Allen 265 TRTP brings together the best of the 275 and 255 models in one versatile machine. Featuring a vibration rack inspired by the 275, it delivers reliable concrete consolidation for demanding projects.
For improved efficiency, the operator console and controls are positioned at the end of the frame, creating a lightweight paver option that maintains the strength and performance contractors expect from the TRTP series.
SPECIFICATIONS
Engine
Hatz 4H50TIC (T4F)
Horsepower Class
74 HP / 55.2 kW
Fuel Type
Liquid-cooled Diesel
Widths Available
12 - 34 ft / 3.6 - 10.4 m
Weight at 22 ft
8,700 lb / 3,946 kg
Roller Tube Diameter
10 in / 25.4 cm
Tube Weight Per ft
27 lb / 12 kg
Hydraulic Oil Reservoir
30 gal / 114 l
Hydraulic Spray System
Standard
Hydraulic Steering Leg
Standard
Vibrator Depth
24" Below Grade
Vibrator Frequency
11,000 VPM
Custom‑Built Machine – Triple Roller Tube Paver is tailored to project requirements.
Quoting Process – Contact our team to discuss specifications and receive a personalized quote.
Applications – Ideal for roadways and airport projects.
