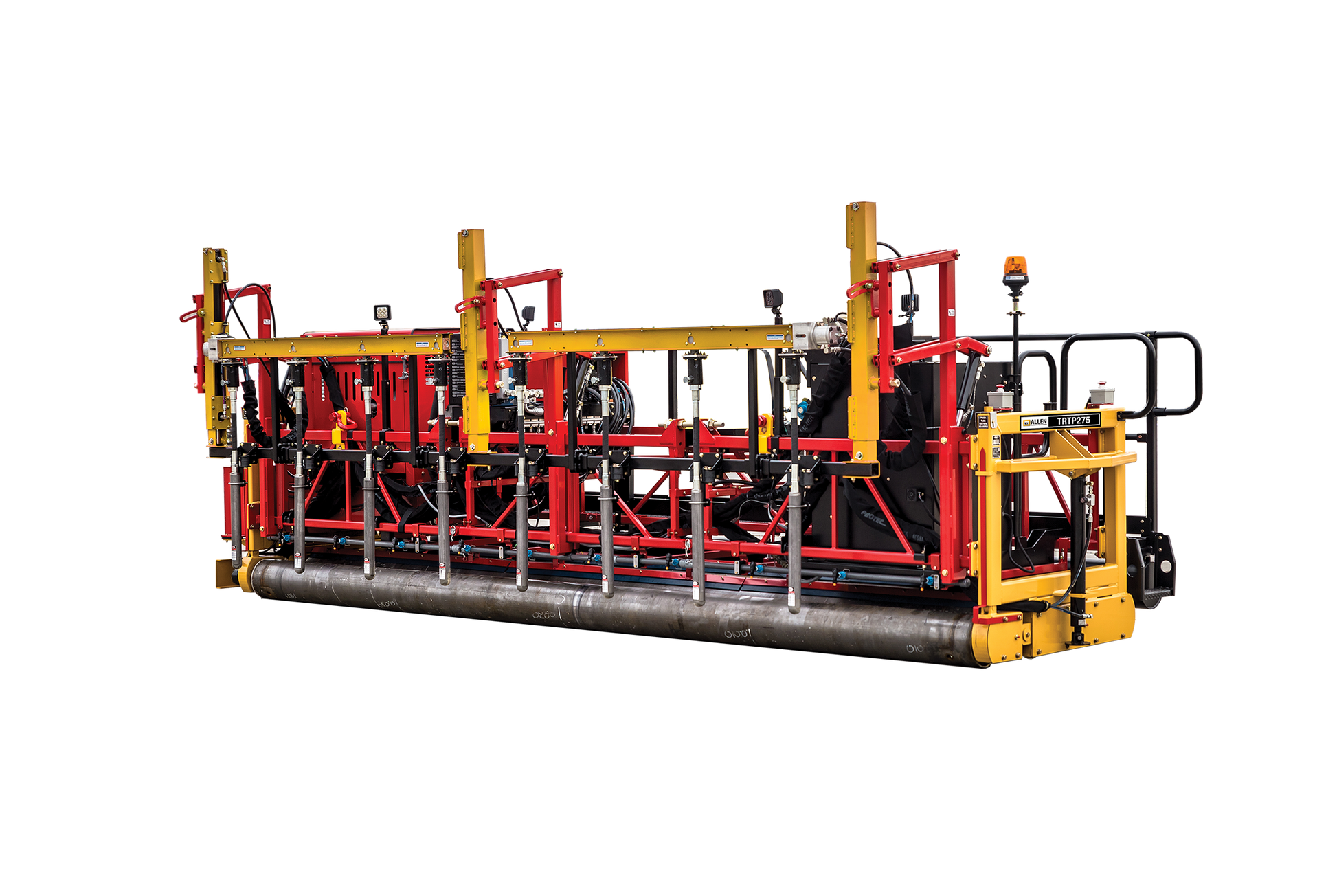

The Allen 275 TRTP is the largest truss screed in the lineup, engineered to tackle demanding roadway and airport projects with ease. Featuring a gang vibration system, it delivers consistent concrete consolidation to meet the toughest specifications.
Powered by a 74 hp Hatz diesel engine, this workhorse combines strength with reliability. An operator console built into the machine’s frame enhances visibility and safety, ensuring efficient performance on every pour
SPECIFICATIONS
Engine
Hatz 4H50TIC (T4F)
Horsepower Class
74 HP / 55.2 kW
Widths Available
12 - 34 ft / 3.6 - 10.4 m
Weight at 22 ft
8,700 lb / 3,946 kg
Roller Tube Diameter
10 in / 25.4 cm
Tube Weight Per ft
27 lb / 12 kg
Hydraulic Oil Reservoir
60 gal / 227 l
Hydraulic Spray System
Standard
Hydraulic Steering Leg
Standard
Vibrator Depth
24" Below Grade
Vibrator Frequency
11,000 VPM
Custom‑Built Machine – Triple Roller Tube Paver is tailored to project requirements.
Quoting Process – Contact our team to discuss specifications and receive a personalized quote.
Applications – Ideal for roadways and airport projects.
Shipping is not included in the checkout total. Once your order is placed, our team will contact you with the best available freight options and pricing. Your order will only be dispatched after the shipping cost is confirmed and paid.
