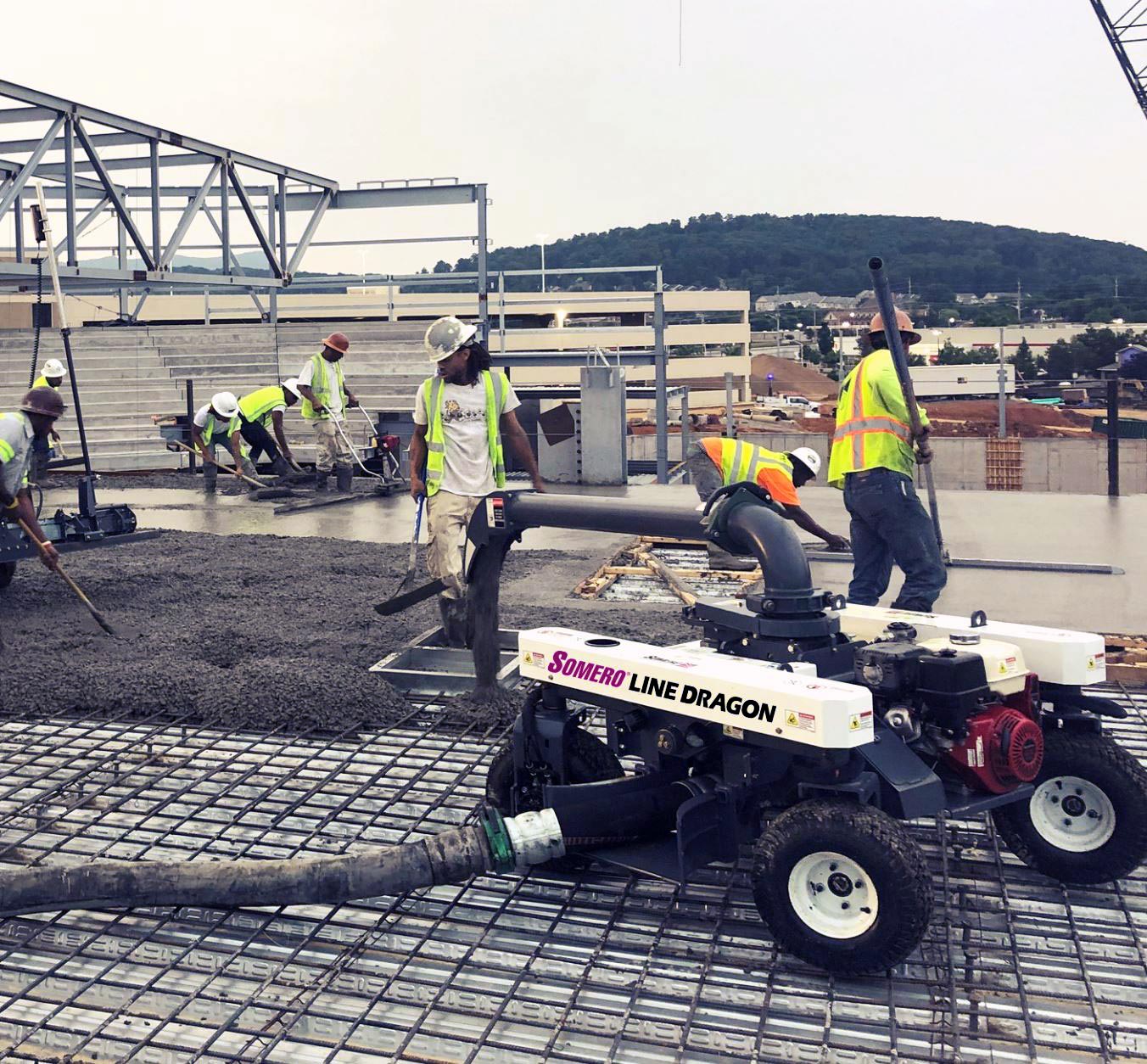

Born from Somero®’s 2019 acquisition of Line Dragon®, this advanced system combines proven innovation with powerful new features to deliver the industry’s most nimble and efficient concrete placing solution.
Designed to boost productivity, reduce labor demands, and minimize injury risks from manual hose handling, the Somero® Line Dragon® system sets a new benchmark in jobsite safety and performance.
New Features & Benefits
- Reinforced antenna guard for added durability
- Integrated toolbox for remote storage
- Quick-access hydraulic manifold
- Horn feature to prevent hose pinching
- Protective cover for the hydraulic tank and gauges
- Upgraded clamp and seal to reduce wear on the elbow connector
SPECIFICATIONS
| WEIGHT | Puller: 521.6 kg | Placer: 601 kg |
| WIDTH | 1.3 m |
| LENGTH | Puller: 1.8 m | Placer: 1.9 m |
| HEIGHT | Puller: 1.1 m | Placer: 1.1 m |
| ENGINE | 11.7-hp / 8.7-kW Honda GX390 |
| TIRES (STANDARD) | Carlisle 18×8.5 |
| SCREED HEAD WIDTH | 3 m |
| STEERING ANGLE | 180 deg |
Exclusive to Southeast Asia – Contact Us for Details
